Computer Simulation
for
Intake/Exhaust Valve
(Patent # 5,782,215)
Or
Uniport Valve


This simulation compares a Uniport Valve head (using it alone) to a conventional two valve head. Following is a brief summary of some of the things that were accounted for in the simulation.

1) The port in the UniPort Valve simulation was approximately 60% bigger than the intake port of the Two Valve simulation.

2) I assumed the flow through the ports in the Two Valve simulation to be decreased by 10% due to shrouding effects, while assuming none for the Uniport Port Valve.

3) Heat losses were computed ignoring losses due to radiation.

4) friction losses were assumed to be 10% of the heat of combustion delivered to the engine.
5) Valve timing was adjusted for each design to obtain maximum power when the engine operated at 6000 RPM.

6) The simulations used the same combustion efficiencies and flame travel times, even though I believe there could be improvements in both by using the Uniport Valve.

Engine Specifications Used for
Simulations


Supercharged, SI, Four Cycle - Gasoline Engine

Number of Cylinders=       8

Displacement =           361.9 cubic in.

Diameter of Bore=          4.00 in.

Stroke Length=             3.60 in.

Connecting Rod length=     5.76 in.

Compression Ratio=        10.0

Pressure in Intake Runner= 1.65 atm

Temp. of Incoming Air=    29.4 C

Combustion Efficiency=      .978

Equivalence Ratio=         1.0

                               Uniport Valve     Two Valve

Simulation       Simulation
port area for intake gas         4.06 sq. in.     2.45 sq. in.

port area for exhaust gas        2.46 sq. in.     1.79 sq. in.

degs bBDC ex. valve opens       80 degrees       90 degrees

degs bTDC exhaust closes         5 degrees       -2 degrees

degs bTDC intake opens           5 degrees        8 degrees

degs aBDC intake valve closes   29 degrees       34 degrees

Computer Simulation Data for:

Supercharged, SI, Four Cycle - Gasoline Engine

Running at 7,000 RPM

                        Uniport Valve       Two Valve System

thermal efficiency =         24.9 %               22.9%

volumetric efficiency=        1.716                1.41

heat losses=                311. hp              306. hp

break horsepower=           690. bhp             496. Bhp

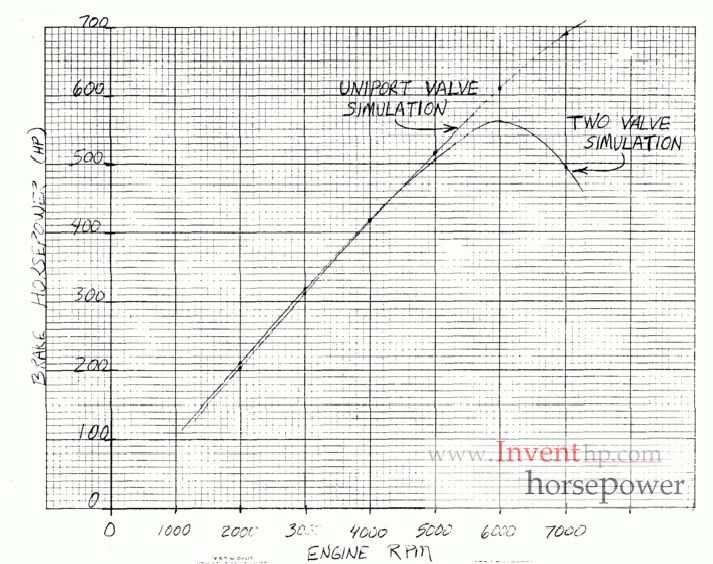

Graph Comparing Power Output
of a Standard Two Valve Engine to
 An Engine using a Uniport Valve

Graph comparing power output of a conventional engine to one that uses a Uniport Valve.

This graph uses the two points from the tables shown before and other pairs computed at 1000 RPM increments using simulation program.
